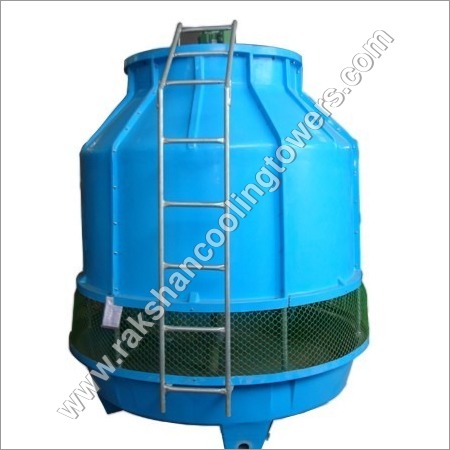

    Cooling Towers

    Cooling Towers
    Cooling Towers
    Product Code : RE-CL-01
    Brand Name : RAKSHAN EQUIPMENTS
    Price And Quantity
    • Minimum Order Quantity
    • depend
    • Unit of Measure
    • Unit/Units
    Product Description

    We are eminent manufacturers, suppliers and exporters of a wide range of Cooling Towers. These cooling towers are used for effective removal of heat and cooling buildings, these products are used by various industries like oil refineries, thermal power stations, petrochemical & chemical plants and HVAC systems. These products are wide accredit for their durability, easy installation, low maintenance, resistance against corrosion and high strength, these products are widely appreciated by our huge clientele. Cooling Tower are available in different models as per client's specific requirement.


    Salient Features of Cooling Towers

    • A series of 30 models are available with multi-cell options
    • In single cell construction, its capacity is 10RT-1000RT
    • For less capacities, there is a direct drive system
    • Package Tower up to 80 Refrigeration Tonnage (RT)
    • Easy installation with simple, compact designs
    • Quick after sales support backed with ex-stock delivery
    • Various parts that have latest designs are Drive System, FRP Fan Assembly, Nozzles, PP ‘EASY Clean’ Ring Fills, PVC Block Fills and PVC Eliminators.

    What is Cooling Tower?

    A cooling tower generates low temperature liquid using electricity or evaporation of water and releases the heat via cooling fins on the back of the refrigerator. Then it goes via expansion device where the pressure is suddenly low and the liquid turns into vapor and gives cooling effect. The transmitting water can be used in different activities like, chemical plants, air-conditioning and oil refinery etc. later the heat is drawn out from the atmosphere.

    Cooling Towers are very light in weight, durable in use, less makeup volume, easy to install, power saving, low maintenance, easy to clean and corrosion resistant. Further, it has a very unique design, circular in shape and non rusting FRP basin & casing, Prevailing Wind Directions will not affect tower performance.

    Characteristics of Cooling Towers

    • Installation on roof tops is also possible
    • Power saving and Non deteriorating
    • Resistance to corrosion and enhanced operating life
    • Simple to install and very less maintenance
    • Sturdy construction, less weight, least clearance and reduced make up volume

    Design Features of Cooling Towers

    • Circular Shape
    • FRP Casing as well as Basin are constructed in non-rusting manner
    • No special installation is required
    • Wind Directions and Speeds does not effects the performance of these towers

    Advantages:

    • lowest operating costs
    • No scale formation
    • Cleaning of heat exchangers not required
    • Reliability
    • Less maintenance
    • Rust resistant
    • Low Maintenance effort
      • Mainly visual checks
      • No consumable fill
    • No partition walls
    • Ease of access
      • Fan motor
      • Drive belt
      • Heat exchangers
    • Minimal movable parts that is fan and motor
    • Ease of cleaning
      • 1.700 psig pressurized water in any angle
      • Chemical cleaning possible, if required
    • Reliable operation
      • High quality
      • Meets EMC requirements
      • Innovative design
      • Unique corrosion protection
      • Closed cooling water loop
      • Reduced potential downtime
    • Ease of use
      • Minimum installation works
      • Ease of maintenance
      • Straight forward control system
    • Ideal for low temperature applications

    Technical Specifications:

    Product Name Cooling Tower
    Design Specification Capacity 300m3/h
    Water Flow Rate 300m3/h
    Approach of cooling water 4°C
    Inlet Water Temp 55°C
    LVG.Water Temp 33°C
    Ambient Air Temp.WB 28°C
    Water cooling range 10°C
    Ambient Air Temp.DRY 31.5°C
    Evaporation Loss
    ‰ of flow rate
    0.6‰
    Dimension 5.3*3.5*6.2m
    Weight Dry Weight 4.55ton
    Operation Weight 6.75ton
    Basin Defined by user
    Fan Type of Fan Propeller type fan W
    /Fixed pitch
    Drive system Belt Drive
    Fan diameter and NO.of piece 3800/4mm/piece
    Fan rate 231000m3/h
    Max. wind load
    Motor Motor Type Vertical
    Supply Vlt/Phase/Hz 380/50V/Hz
    1piece
    Pipe Inlet Hole 300mm
    Outlet Pipe 350mm
    Overflow Pipe 50mm
    Material Steel material Q235 with FRP Anti-corrosion wrapped outside
    Casing FRP
    Fan casing Cast steel
    Fan blade FRP
    Distribution Mortar tank
    Water basin Mortar tank
    Louver FRP
    Filling No-Padding
    Specifications
    Pipe Q235 with FRP Anti-corrosion wrapped outside
    Bolt Q235 galvanized
    Type of Distribution Spraying
    Anti-corrosion
    Color Fruit green
    Standard attach V-belt
